Pick & Ship Circulation Heaters

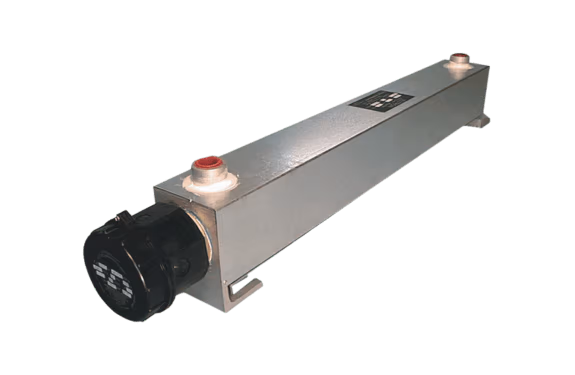

3D render of the pick and ship circulation heater
icon of a box for fast shipment
Express Shipping

Pre-designed and assembled item available for rapid delivery.

Pick & Ship Circulation Heaters

The P&S circulation line has a heating capacity of up to 58kW and covers the most common application watt densities (7.5, 15, 25, & 45 wpsi).

Voltage — 480V 3 Phase, but can run at lower voltages and de-rated.

Terminal Enclosure — Powder coated, color red, rated NEMA 4 / IP66, UL / cCSAus Certification.

Elements — Heater elements are INCOLOY® 800 for superior corrosion resistance and longevity.

Vessel — Painted exterior, SA-53B Carbon Steel construction, ANSI rated 150# flange heater with NPT process connections.

Element Protection — One type K thermocouple attached to element sheath for overtemperature protection located in a separate aluminum junction box, rated NEMA 4 / IP66 with a 3/4” NPT wiring connection.

Process Sensor — One type K thermocouple located at the outlet in a separate aluminum junction box, rated NEMA 4 / IP66 with a 3/4” NPT wiring connection.

Additional Thermowell — An INCOLOY® 800 bundle thermowell is provided for customers requiring additional process temperature input locations.

Mounting — One fixed mounting lugs and one slotted lug (to allow for thermal expansion) is provided.

Third Party — UL / cCSAus.

Request a Quote

For aggressive lead time requirements and competitive pricing, our Pick and Ship program has you covered.
