SRL Self-Regulating Heating Cables
(Low Temperature)

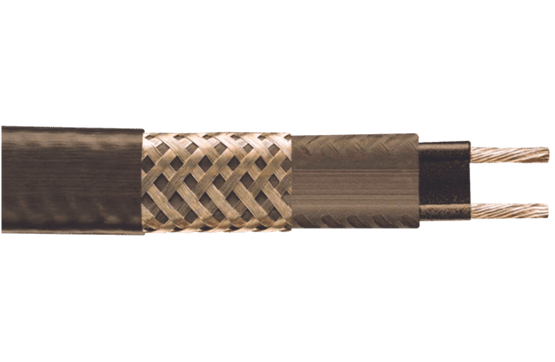

picture of a stripped cpr cable
Chart Icon svg image 48 height by 48 width
Energy Efficient

Optimized for efficiency gains across your processes.

Time Icon svg image 48 height by 48 width
Quick Install

Designed for faster installation to reduce your labor time.

Temperature Icon
Self-Regulating

Over temperature conditions are minimized.

About SRL Self-Regulating Heating Cable

Chromalox SRL self-regulating heating cable provides safe, reliable heat tracing for freeze protection of pipes, valves, tanks and similar applications. Constructed of industrial grade 16 AWG buss wire with a tinned copper braid, SRL ensures operating integrity in Div. 2 hazardous environments as well as certain corrosive industrial environments. SRL heating cable has a maximum maintenance temperature rating of 150°F (65°C).

WARNING — A ground fault protection device is required by NEC to minimize the danger of fire if the heating cable is damaged or improperly installed. A minimum trip level of 30mA is recommended to minimize nuisance tripping.

SRL Self-Regulating Heating Cable (Low Temperature)

+  Self-Regulating, Energy Efficient
+  16 AWG Buss Wire
+  Circuit Lengths to 660 Feet
+  Process Temperature Maintenance to 150°F (65°C)
+  Maximum Continuous Exposure Temperature, Power Off, 185°F (85°C)
+  Industrial Freeze Protection Applications
+  Field Splicing Without Disrupting Heat Output
+  3, 5, 8 and 10 W/Feet
+  120 and 208 - 277 Volt From Stock
+  Approximate Size .47 in. W x .20 in.H
+  Min. Bend Radius 1-1/8"
+  For Use on Metal and Plastic Pipes
+  Factory Mutual (FM) Approved, UL Listed, and CSA certified for ordinary areas
+  ATEX, IECEx, FM, and CSA Approved for hazardous (classified) areas when used with U Series, HL, DL, and EL accessories
+  Energy efficient, self-regulating SRL uses less energy when less heat is required
+  Easy to install, SRL can be cut to any length (up to max. circuit length) in the field
+  Field splices can be performed easily in minutes with no scrap or wasted cold sections
+  SRL features lower installed cost than steam tracing, less maintenance expense and less downtime
+  SRL can be single overlapped without burnout, which simplifies heat tracing of in-line process equipment such as valves, elbows and pumps
+  Because SRL is self-regulating, over-temperature conditions are minimized
+  Chromalox termination, splice, tee and end seal kits reduce installation time

Request a Quote: Self-Regulating Heating Cable

Chromalox heat trace solutions offer a safe, reliable and efficient way for freeze protection and process maintenance of pipes, valves, and tanks in the most extreme conditions. Discuss your self-regulating heating cable requirements with our team of heat trace experts
