CMi HDPE - Jackted MI Heat Trace Cables

Time Icon svg image 48 height by 48 width
Quick Install

Designed for faster installation to reduce your labor time

Cog Icon svg image 48 height by 48 width
Durable Design

Long service life in hostile environments

About the Product

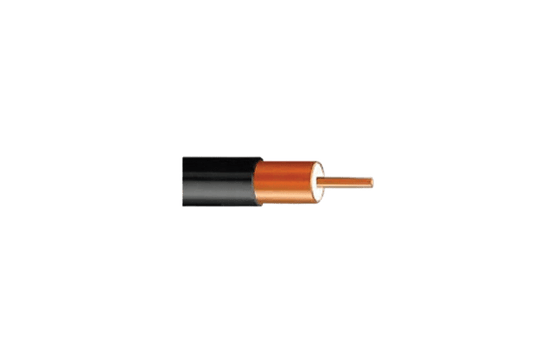

The copper-sheathed, mineral insulated heating cables are covered with an extruded high-density polyethylene (HDPE) jacket and are supplied as complete factory-assembled cables ready to connect to a junction box. The series-type technology, inherent to all mineral insulated heating cables, provides a reliable and consistent heat source that is ideal for embedded snow melting applications. The copper sheath provides an ideal ground path and allows for a rugged yet flexible heating cable that is easy to install.

The MI heating unit consists of the heating cable, the hot-cold joint and the cold lead cables with an appropriate seal and gland. The connecting and sealing of an MI heating unit is critical for safe and reliable operation, please refer to the following pages for standard construction types. The insulation of the inner heating conductor is embedded in magnesium oxide, a non-aging and non-combustible material. A wide range of resistances ensures the termination of a multitude of heating cable lengths with various outputs and nominal voltages. We offer both single core and dual core resistance wires as well as a seamless outer jacket made from Copper + HDPE.

WARNING — A ground fault protection device is required by NEC to minimize the danger of fire if the heating cable is damaged or improperly installed. A minimum trip level of 30 mA is recommended to minimize nuisance tripping.

CMi HDPE - Jacketed MI Heat Trace Cable

+  Factory Terminated Heating Sets
+  Great for Snow Melting or Heat Loss Replacement Applications
+  rated for multiple voltages up to 600V
+  Corrosion Resistant Copper Jacketed Cables
+  HDPE Jacketing Protects Against Abrasions and Corrosives
+  Max Exposure Temperature to 194°F (90° C)
+  15' Standard Cold Lead Length
+  1/2" Cable Gland Size
+  Heater Voltages up to 600 VAC
+  8 to 24 W/ft Output Ratings
+  Lengths from 40 to 846 ft.
+  Third-party certification: cCSAus


Features of CMI Cable

  Max. Exposure Temp. (°F)     194
  Max. W/Ft.    24
  Max. Circuit Length (Ft.)    846
  Voltages     Up to 600
  Hazardous Ratings   No
  Usable on Plastic Pipe     No
  Cut-to-Length in Field     No
  Field Splicable     No
  Can be Overlapped     No
  Output Varies with Temp.     No
  Varies Output Along Length     No

MI Corrosion Selection Guide

 Moisture   Yes
 Aqueous Solutions of Inorganic Compounds   No
 Liquids Organic Chemicals Acids or Bases   Yes
 Acids or Bases   No

This is a recommendation guide. Chromalox cannot warrant any Electric Heat Trace against failure by sheath degradation if such failure is the result of operating conditions beyond the control of the heater manufacturer. It is the responsibility of the purchaser to make the ultimate choice of sheath material based on knowledge of the chemical composition of the corrosive solution, character of materials entering the solution, and controls which maintains the process.
