Chromalox Over-the-Side Immersion Heaters are designed for installing in the top of a tank with the heated portion directly immersed along the side or at the bottom. This provides easy removal of the heater and ample working space inside the tank. Our commercial heaters are available with heating elements made of Copper, Steel, Stainless Steel, Cast Iron, INCOLOY®, Titanium, Fluoropolymer coated, and Quartz. A wide selection of kW ratings, shapes and mounting methods are available to suit many different types of applications.

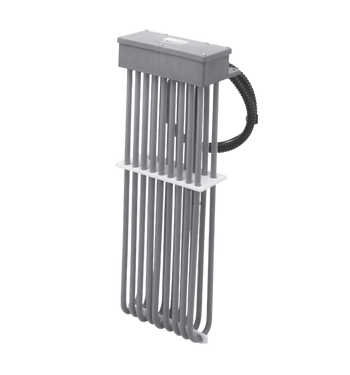

	GTF6 & GTF9 Side Mount Fluoropolymer Covered Heaters 2-12kW (GTF6) 3-18kW (GTF9) 240 and 480V Three Phase 10 wpsi

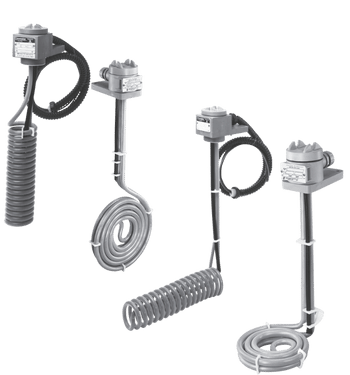

	GTF, GTFL, GXF, & GXFL Spiral or Coiled Fluoropolymer Covered Heaters 1-6kW 120, 240, and 480V Single Phase 10 wpsi

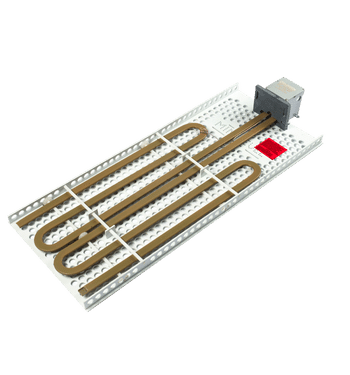

	TPR & TPF Side Mount Fluoropolymer Coated Metal Thin Blade Heaters 1-6kW 120, 240, and 480V Single Phase 10 wpsi

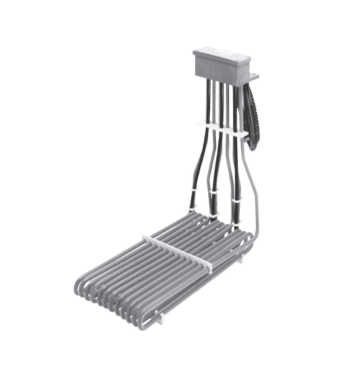

	GTFL3 L-Shaped Fluoropolymer Covered Heaters 3-18kW 240 and 480V Three Phase 10 wpsi

Over the side Immersion Heater Design Guide

GTF6 & GTF9 Side Mount Fluoropolymer Covered Heaters

GTF6 & GTF9 Catalog Page
GTF Replacement Thermal Fuses
GTF Catalog Page

GTF, GTFL, GXF, & GXFL Spiral or Coiled Fluoropolymer Covered Heaters

GTF / GTFL / GXF / GXFL Catalog Page
GTF Replacement Thermal Fuses

TPR & TPF Side Mount Fluoropolymer Coated Metal Thin Blade Heaters

TPR & TPF Catalog Page

GTFL3 L-Shaped Fluoropolymer Covered Heaters

GTFL3 Catalog Page
