Isopad IT-FG200

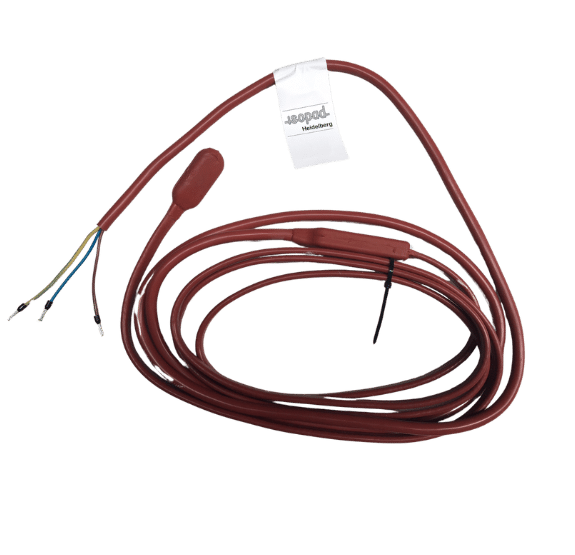

picture of a Isopad IT FG200 cable on a pipe

About Isopad IT-FG200

FG200 is a parallel circuit, medium wattage, constant power heating cable that can be cut to length to fit the application parameters. It is designed to operate in a variety of process applications in non-chemically aggressive environments where versatile flexibility and at-site assembly is required. FG200 comprises of twin electrical conductors insulated with highly flexible silicone rubber as primary insulation. The heating element is spiraled around the primary insulation and connected to the conductor at pre-defined zone lengths of 500mm. The secondary insulation is made from flexible silicone rubber. For additional mechanical protection and electrical safety reasons the heating cable can be delivered with an optional metal braid.

Features

Cut to length heating tape with installation kit
Maximum Temperature Rating: 180C (356F)
Minimum Bending Radium for Installation: 25mm
Electrical Insulation of Heater: Silicone rubber
Outer Sheath: silicone rubber, optional with metal braid
Nominal Power Output: 10 - 40 W/m
Supply Voltage: 110V or 230 V

Request a Quote

Chromalox Isopad heat tape solutions offer a safe, reliable and efficient way for freeze protection and process maintenance of pipes, valves, and tanks in the most extreme conditions.
